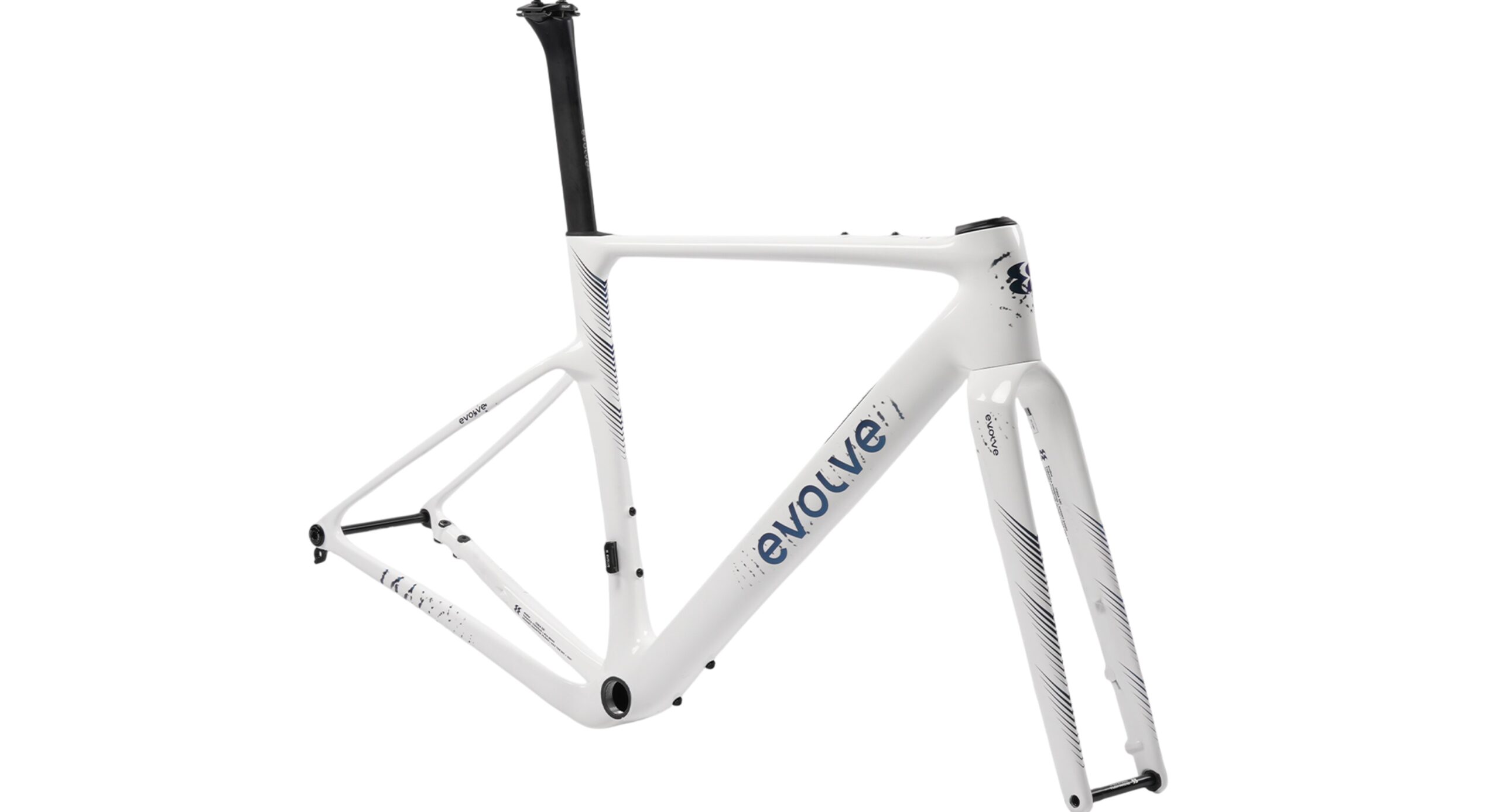

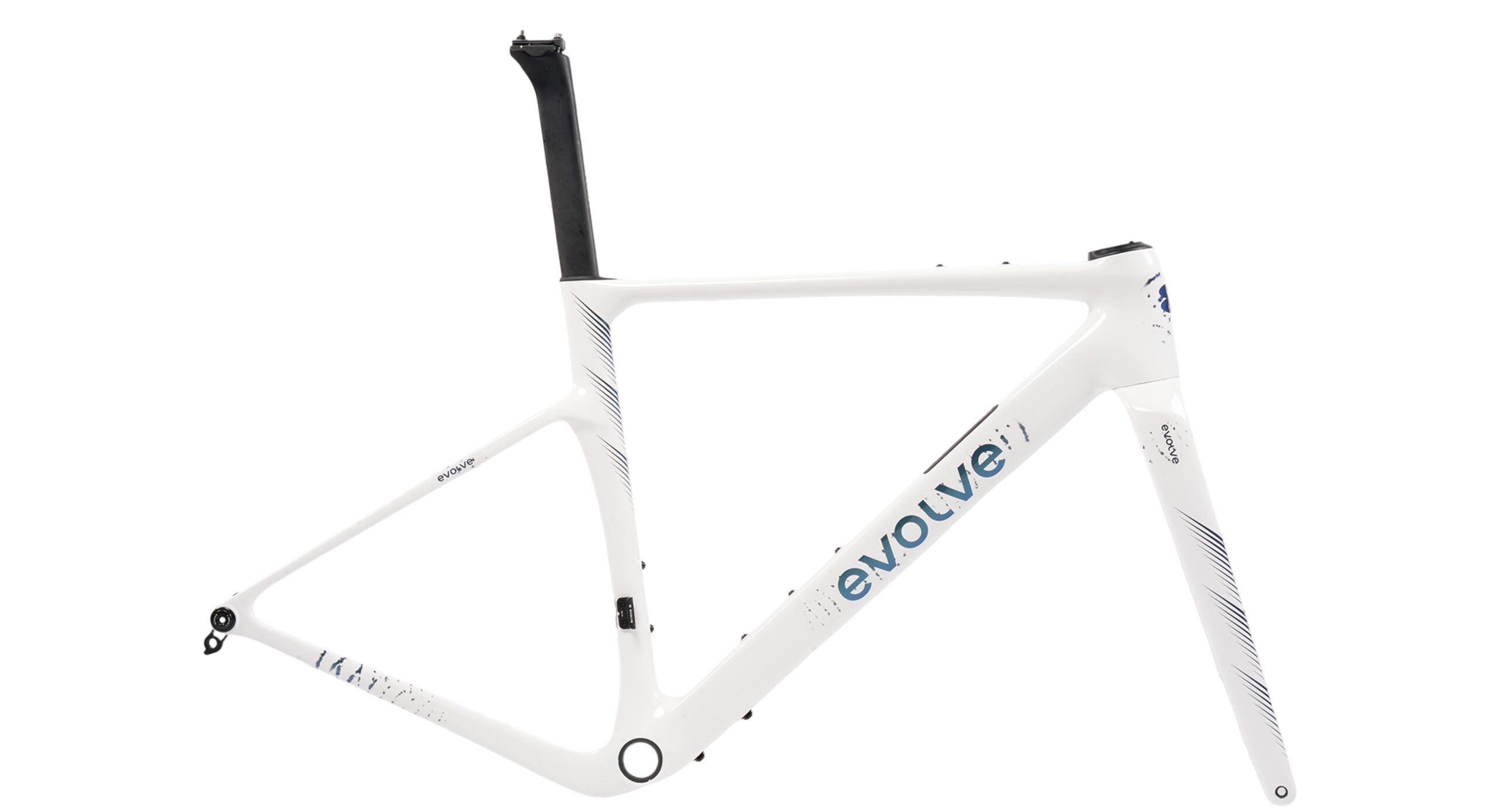

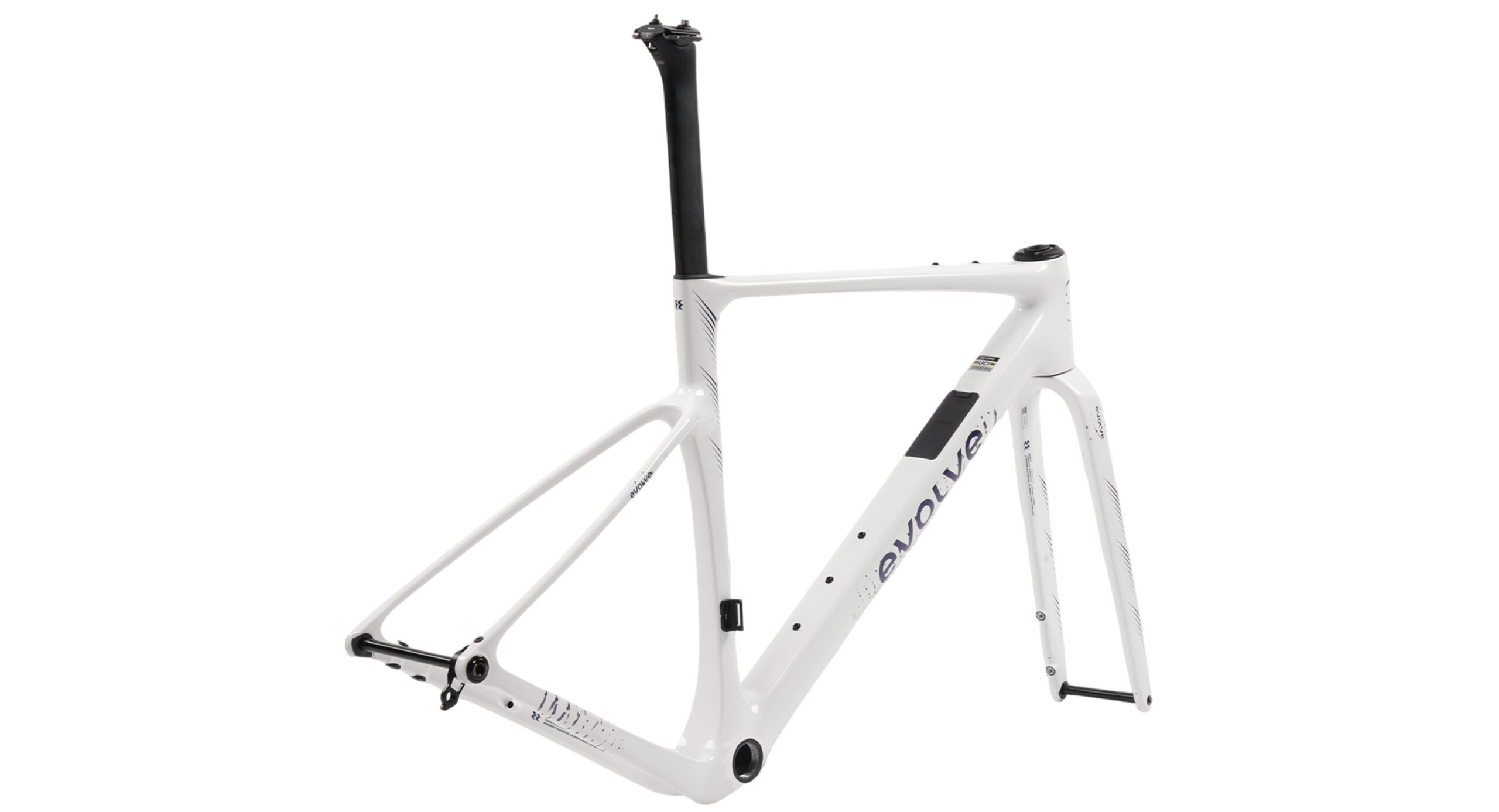

evolve Road Frameset CIMA GR – Sailfish Pearl
RM10,599.00
Wrong size = bad knees & sad rides. 🚴♂️
Key Features
LIGHT AS THE WIND, DEFINING IMAGINATION
M-SIZED FRAME – 650g
(UNPAINTED)
6 SIZES
- Suitable for rides with heights from 146cm to 202cm
STR VALUES
- 1.36/1.40/1.42/1.44/1.46/1.50, Suitable for XS to XL sizes
2 DIFFERENT OFFSET FORKS

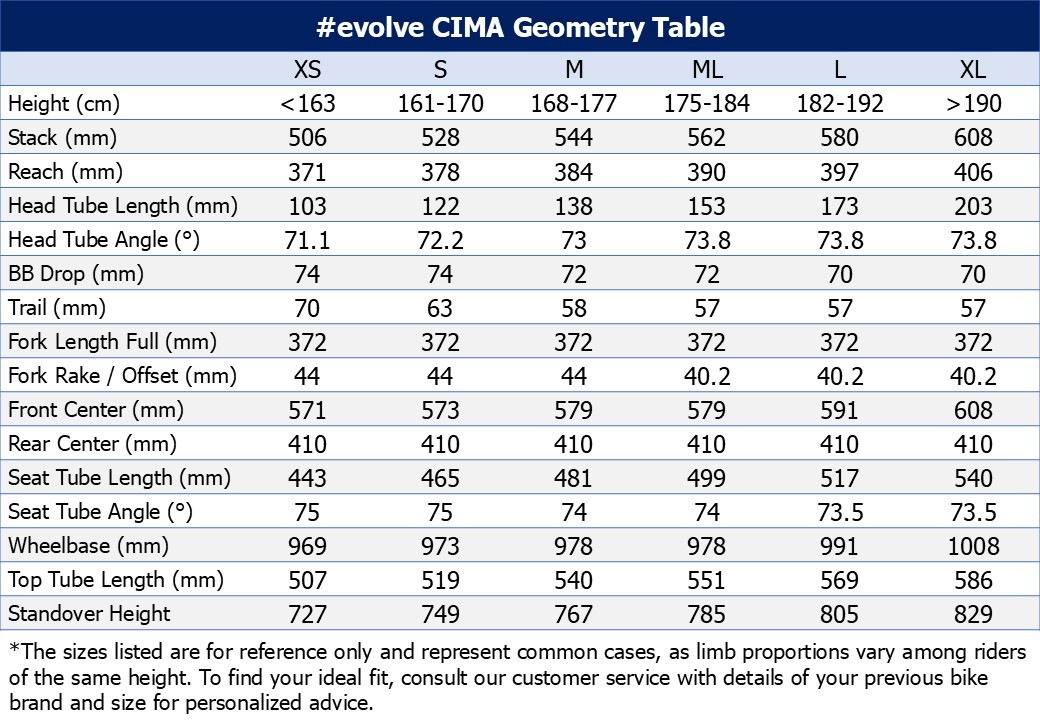

3 DIFFERENT BB DROPS
- Maintaining consistent handling across sizes
T1100 & T800; M40
- High-quality toray carbon fabric
12%↑
- Special resin formula increases rigidity by 12% compared to traditional resins
Ceramic speed SLT headset bearings
BSA Threaded bottom bracket
SRAM UDH Derailleur hanger
In-house Testing
- evolve maintains strict standards across 21 testing items for frame and fork, ensuring enhanced reliability and riding safety.
Silverstone Sports Engineering Hub Wind Tunnel Testing
- Validating and ensuring greater aerodynamic performance
Custom Build Available at Centro Cycles
Every cyclist has different goals, riding styles and preferences.
At Centro Cycles, we provide personalised consultation to help you configure your evolve CIMA exactly the way you want it.
Whether you’re building a lightweight climbing bike, an all-round race machine or your dream superbike, our team will recommend suitable components based on your riding needs.
Our custom build consultation includes:
- Frame size recommendation
- Groupset selection
- Wheelset matching
- Cockpit configuration
- Component compatibility advice

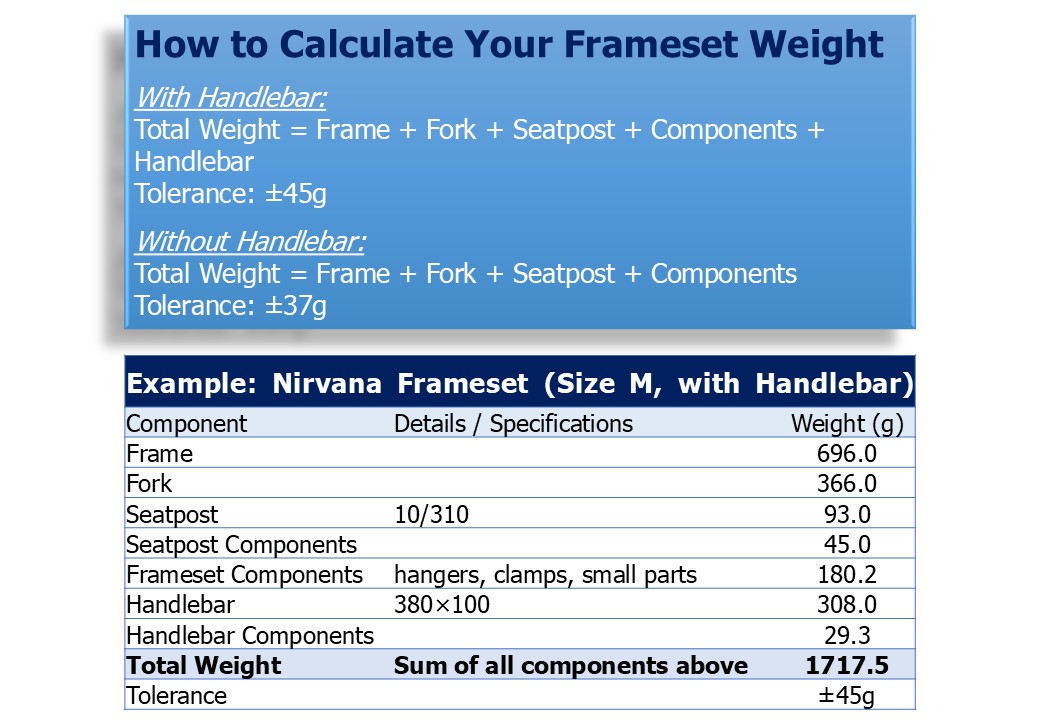

SPECS & WEIGHTS
| Frame Material | TORAYCA T1100, T800 & M40 |
| Frame Sizes | XS, S, M, ML, L, XL |

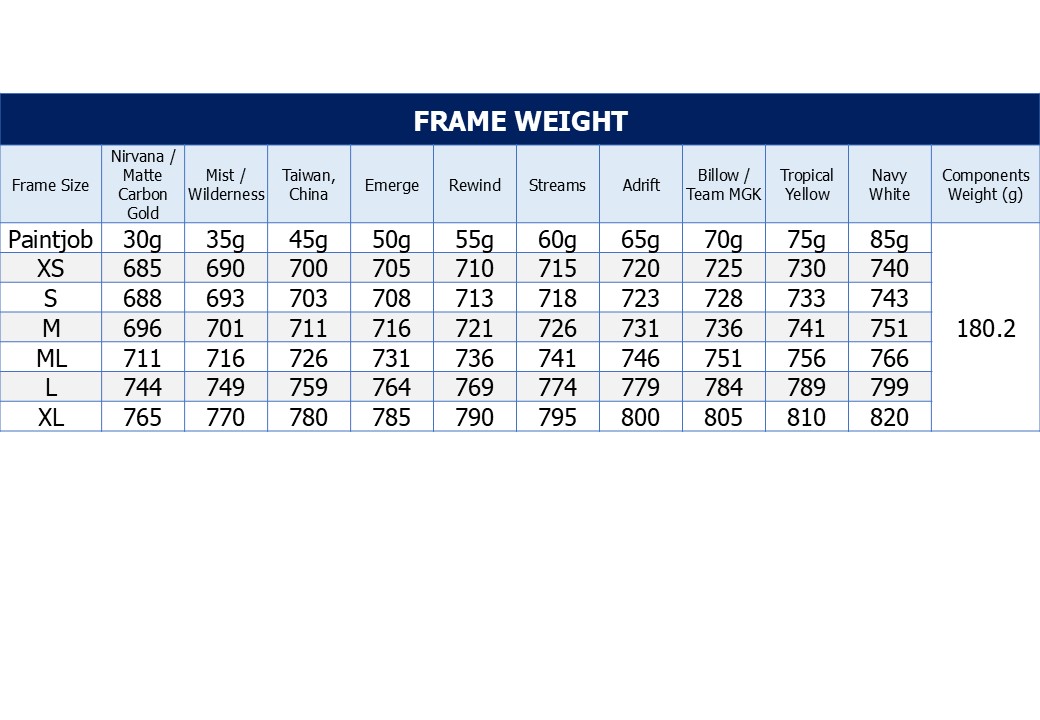

| Frame Weight | 650g (M-sized; unpainted) |
| Fork | Offset 44.0mm (XS S M); Offset 40.2mm (ML L XL) |

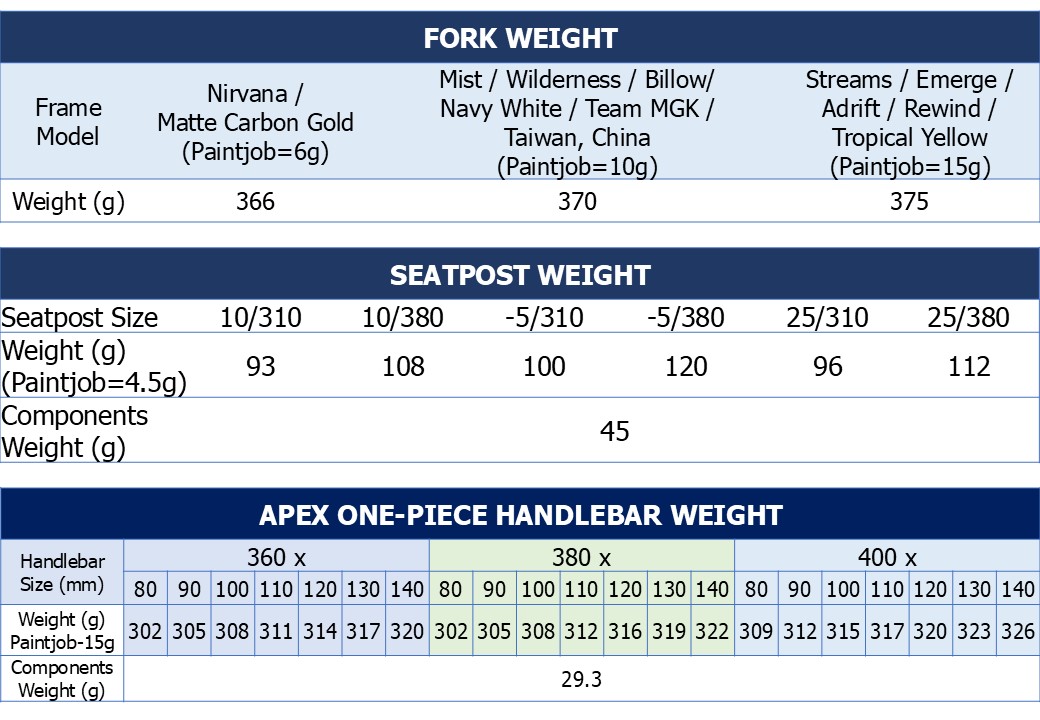

| Fork Weight | 355g (unpainted) |
| Headset | CeramicSpeed SLT Bearing |
| Headset Bearing Size | 40.5 mm ID x 49.5 mm OD x 6.5 mm |
| Head Tube Diameter | 49.5mm |
| Seatpost | evolve Seatpost |
| Seatpost Weight | 140g（Parts included） |
| Saddle Rail Clamps | 7×7, 7×9, 7×10 |
| Bottom Bracket | BSA Threaded Bottom Bracket,68mm Width |
| Cable Routing | Internal |
| Rear Derailleur Hanger | Sram UDH M12x1mm |
| Brake Type | Flat Mount Disc Only |
| Max Rotor Size | 160mm F&R |
| Max Chainring | 58-tooth |
| Front Axle | 12 x 100mm |
| Rear Axle | 12 x 142mm |
| Wheel Size | 700C |
| Tire Clearance | 24C-32C |
| Manufacturer Warranty | Limited Lifetime Warranty |
| Certification | UCI Approved; CE Certified |
| Limited Rider Weight | 109kg |
| Compatible Groupsets | All Shimano electronic shifting systems, all SRAM electronic shifting systems, and Campagnolo WRL systems. (Note: EPS systems are not compatible, as the battery diameter is too large to fit inside the frame.) |
Ready to Build Your CIMA?
Choose your CIMA | Choose your story | Build it your way
Artist
Emerge
Artist
Mist
Artist
Tropical Yellow
Artist
Wilderness
GR
Sahara Nude
GR
Sailfish Pearl
Special Edition
Billow
Special Edition
MGK TEAM
Special Edition
Rewind
Special Edition
Taiwan, China
Speed
Adrift
Speed
Matte Carbon Gold
Speed
Navy White
Speed
Nirvana
Speed
Streams
click here to WhatsApp us for enquiries and custom build consultation
